Product Details:
Payment & Shipping Terms:
|
Product Name: | Custom SHB Lifting Pipe Welding Positioners | Application: | Pipe Welding |
---|---|---|---|
Type: | Self Adjustable | T Slot No.: | 8 |
Revolve Speed Control: | Variable Frequency Speed Control | Tilting Speed: | Constant |
Work-table Shape: | Round Or Custom | Special Design: | Available |
Loading: | 600kg | Lifting Adjustable: | NO |
High Light: | pipe welding positioners,weld positioner |

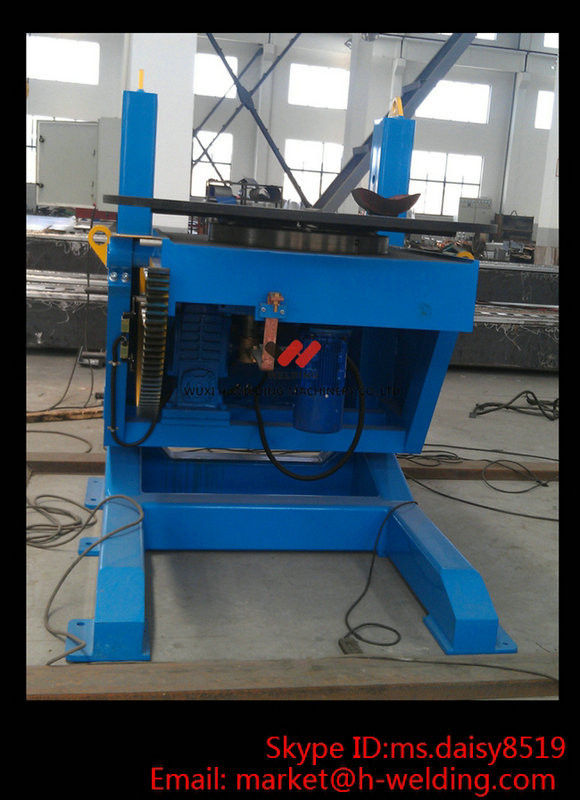

Custom SHB Lifting Pipe Welding Positioners Loading 600kg , VFD Rotary Pipe Welding Equipment
Specifications:
Model |
SHB10 |
SHB20 |
SHB40 |
SHB60 |
SHB80 |
SHB100 |
|
Rated loading kg |
1000 |
2000 |
4000 |
6000 |
8000 |
100000 |
|
Max.Eccentricity distance mm |
150 |
150 |
150 |
150 |
200 |
200 |
|
Max gravity center distance mm |
350 |
350 |
350 |
350 |
400 |
400 |
|
Work-table dia.mm |
900 |
1200 |
1400 |
1500 |
1600 |
1800 |
|
Flip Angle |
0~135° |
0~135° |
0~120° |
0~120° |
0~120° |
0~120° |
|
Revolve speed rpm |
0.12~1.2 |
0.05~0.5 |
0.05~0.5 |
0.05~0.5 |
0.05~0.5 |
0.05~0.5 |
|
Tilt speed rpm |
0.29 |
0.25 |
0.2 |
0.2 |
0.15 |
0.15 |
|
Revote driving power kw |
1.1 |
1.1 |
2.2 |
2.2 |
2.2 |
3 |
|
Tilting driving power kw |
1.1 |
1.5 |
2.2 |
3 |
4 |
4 |
|
Out size |
A mm |
1500 |
1780 |
2140 |
2760 |
3000 |
33330 |
B mm |
1210 |
1320 |
1500 |
1630 |
1850 |
2020 |
|
C mm |
1670 |
1800 |
2160 |
2600 |
2850 |
3140 |
|
E mm |
1100~1700 (p=150) |
1245~1845 (p=150) |
1350~1950 (p=150) |
1630~2430 (p=200) |
1790~2670 (p=220) |
1970~2930 (p=240) |
|
F mm |
775 |
1035 |
1360 |
1320 |
1630 |
1800 |
|
Rotation speed VPD controller |
|||||||
|
