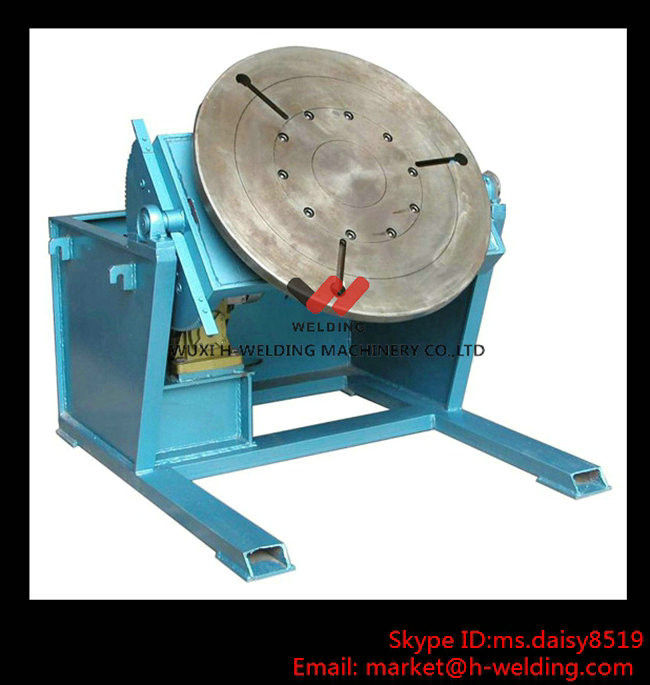

Product Name: | 600Kg Boiler Pipe Welding Positioners Equipment | Application: | Tank Welding |
---|---|---|---|
Type: | Self Adjustable | T Slot No.: | 8 |
Revolve Speed Control: | VFD | Tilting Speed: | Constant |
Work-table Shape: | Round Or Custom | Special Design: | Available |
Loading: | 600kg | Lifting Adjustable: | NO |
High Light: | pipe welding positioners,weld positioner |
600Kg Boiler Pipe Welding Positioners Equipment 0.5rpm For Engineering Machinery
Specifications:
No. |
Item |
||||||
1 |
Model |
ZHB-03 |
ZHB-06 |
ZHB-12 |
ZHB-30 |
ZHB-50 |
ZHB-100 |
2 |
Rated load (kg) |
300 |
600 |
1200 |
3000 |
5000 |
10000 |
3 |
Max eccentric distance (mm) |
100 |
150 |
200 |
200 |
200 |
200 |
4 |
Max distance of the gravity center (mm) |
150 |
200 |
250 |
300 |
300 |
400 |
5 |
Worktable φ D (mm) |
600 |
1000 |
1200 |
1400 |
1500 |
1800 |
6 |
Tilting angle(°) |
0-90 |
0-90 |
0-120 |
0-120 |
0-120 |
0-120 |
7 |
Rotating speed (rpm) |
0.15-1.5 |
0.11-1.1 |
0.11-1.1 |
0.11-1.1 |
0.05-0.5 |
0.03-0.3 |
|
Speed control |
VFD for rotation speed |
|||||
8 |
Tilting speed (rpm) |
manual |
1.1 |
0.4 |
0.23 |
0.2 |
0.14 |
9 |
Rotating motor power(kW) |
0.18 |
0.55 |
0.75 |
1.5 |
2.2 |
3 |
10 |
Tilting motor power(kW) |
/ |
0.75 |
1.5 |
2.2 |
3 |
4 |
11 |
Worktable T slot qty |
4 |
4 |
6 |
6 |
6 |
6 |
Description:
Applications:
Competitive Advantage:
This welding equipment is the special unit designed according to the requirement of user’s welding craft. It has powered tilting and revolves, making the work-piece at ideal position.
According to the necessary welding position of work-piece, it can be tilted certain degree within the range of 0°~120°, and revolved infinitely at any tilt angle. Revolve unit is driven by motor. It has a precise speed-adjusting and reliable position. This machine can be used with various manual or auto welding, and extensively applied to pressure vessel, metallurgy, power, chemical industry, metal structure and others lines. This series roller-bed features is auxiliary equipment for automatic welding. By proper adjustment, it can make work-piece at optimum welding position, attaining purpose of reducing labor intensity, improving, welding speed, guaranteeing welding quality.
