Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Contact Now

Detailed Product Description

Product Name:	5Ton High Speed Auto Rotary Pipe Welding Positioners	Application:	Pipe Loading And Rotary
Type:	Self Adjustable	T Slot No.:	8
Revolve Speed Control:	VFD	Tilting Speed:	Constant
Work-table Shape:	Round Or Custom	Special Design:	Available
Loading:	5000kg	Lifting Adjustable:	NO
High Light:	pipe welding positioners , weld positioner

5Ton High Speed Auto Rotary Pipe Welding Positioners Heavy Duty Loading For Tank / Pipe / Vessel

Specifications:

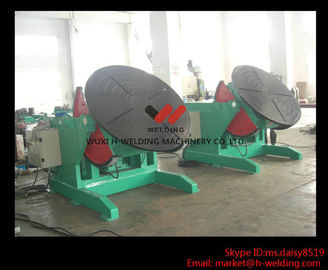

5 Ton High Speed Auto Rotary Pipe Welding Turning Table Heavy Duty For Tank / Pipe / Vessel 0

No.	Item
1	Model	ZHB-03	ZHB-06	ZHB-12	ZHB-30	ZHB-50	ZHB-100
2	Rated load (kg)	300	600	1200	3000	5000	10000
3	Max eccentric distance (mm)	100	150	200	200	200	200
4	Max distance of the gravity center (mm)	150	200	250	300	300	400
5	Worktable φ D (mm)	600	1000	1200	1400	1500	1800
6	Tilting angle(°)	0-90	0-90	0-120	0-120	0-120	0-120
7	Rotating speed (rpm)	0.15-1.5	0.11-1.1	0.11-1.1	0.11-1.1	0.05-0.5	0.03-0.3
	Speed control	VFD for rotation speed
8	Tilting speed (rpm)	manual	1.1	0.4	0.23	0.2	0.14
9	Rotating motor power(kW)	0.18	0.55	0.75	1.5	2.2	3
10	Tilting motor power(kW)	/	0.75	1.5	2.2	3	4
11	Worktable T slot qty	4	4	6	6	6	6

Description:

Frame is welding structure, which is welded into shape from beam and steel plate.
The tilting bearing bases are installed on the both sides of wallboard. It has enough strength and rigidity.

Applications:
