High Light: | watertube steam boiler,horizontal watertube steam boiler,watertube gas steam boiler |
---|
Horizontal Oil (Gas) Watertube Steam Boiler:
1)Capacity: 4-35t/h
2)Pressure: 12.5-38bar
3)Steam Temp.: 194-247 Degree
4)Fuel: Oil & Gas
I. Product Description
1. Adopting membrane water-cooling wall, fully sealing structure, no air leakage, better combustion, not need insulation for its furnace wall, less weight.
2. Double drums D type, water tube and compact structure, small volume, packaged outgoing, easy to install and less investment.
3. Big furnace hearth, enough heating surface, fuel combusting completely, high heat efficiency.
4. Big steam and water volume strong adaptability to load variability
5. Fully automatic controller, choosing renowned brands controlling elements with features of fine quality, easy and flexible operation
6. Renowned brands burners, good quality valves guarantee long life span and no leakage of boiler
7. Boiler ignition, combustion, feeding water, load adjustment and safety protection are all automatically controlled, safter and reliability, flexible adjustment, simple operation.
8. An economizer is options and possible to save 15% fuel, decrease noise 20dB.
II. Functions
1. Providing steam for indstrial users: Paper mills, pharmacy mills, tobacco factories, printworks, textile mills and so on.
2. Providing steam for civil users: Resturants, laundries, hospitals, saunas, etc.
3. Together with steam-water heat exchanger, providing heating for central air conditioning system and radiators.

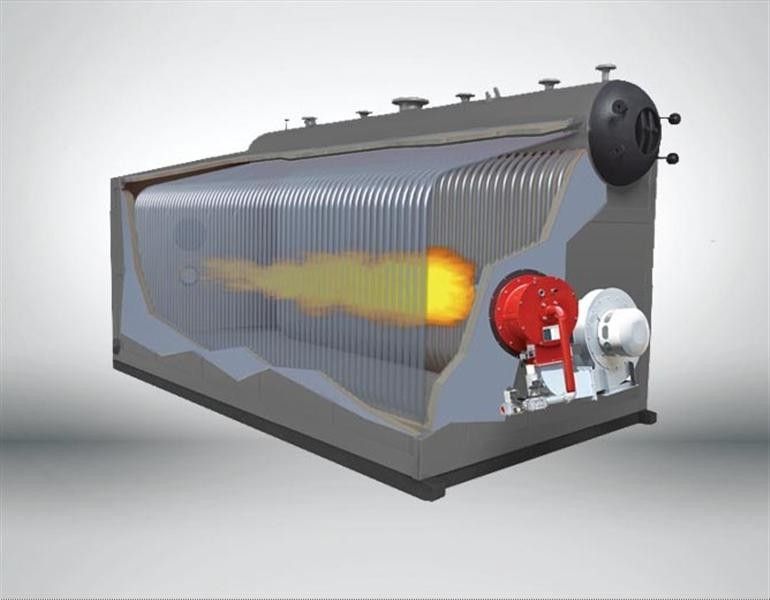

III. Details of Watertube gas fired steam boiler:
IV. Technical Parameters:
SZS Water Tube Steam Boiler | |||||||||||||
Item | SZS | ||||||||||||
4 | 5 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 25 | 30 | 35 | ||
Steam Capacity | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 25 | 30 | 35 | |
Thermal Efficiency | 90%-95% | ||||||||||||
Rated Water Inlet Temperature (°C) | 105 | ||||||||||||
Nominal Steam Temperature (°C) | Saturated(184\194\204\224) \ Superheated(300\350\400) | ||||||||||||
Rated Steam Pressure (MPa) | 1.0 / 1.25 / 1.3/ 1.6 / 2.5 / 3.82 | ||||||||||||
Dimensions | L (mm) | 5600 | 5800 | 6200 | 6400 | 7000 | 7840 | 8100 | 8230 | 8920 | 9530 | 11600 | 13400 |
W (mm) | 2600 | 2600 | 2700 | 2700 | 3000 | 3400 | 3400 | 3590 | 3590 | 4150 | 5080 | 5800 | |
H (mm) | 3400 | 3400 | 3400 | 3400 | 3450 | 3450 | 4100 | 4290 | 4290 | 4720 | 5870 | 6580 | |
Available Fuel | Natural Gas, LPG / Light Diesel, Heavy Fuel Oil, Waste Oil |
